FSM minimization

This program minimizes finite state machines using the implication table method.

out:0
states:((1 2; 0 0);(3 4; 0 0);(5 6; 0 0);(0 0; 0 0);(0 0; 1 0);(0 0; 0 0);(0 0; 1 0))
sp:({x,/:\:x}@,:'states)
start:~/''sp@\:\:\:1
sel:{(2*~0=x)#''+:''sp@\:\:\:0}
step:{{&/(#x),x}'' #:''' (x@/)'''x} sel@
res:&:'~0=step/start
pp:{[x;z] (,"digraph {"), (,/{[x]:[(=/z@/:states[*x;0])&=/states[*x;1];,"S",($*x)," -> S",($z[states[*x;0;0]])," [label=\"/",($states[*x;1;0]),"\"];";{[y]"S",($*x)," -> S",($z[states[*x;0;y]])," [label=\"",($y),"/",($states[*x;1;y]),"\"];"}'0 1]}'x), (,,"}")}
:[out;`0:pp[?res;*:'res];`0:pp[,:' (!#states);!#states]]

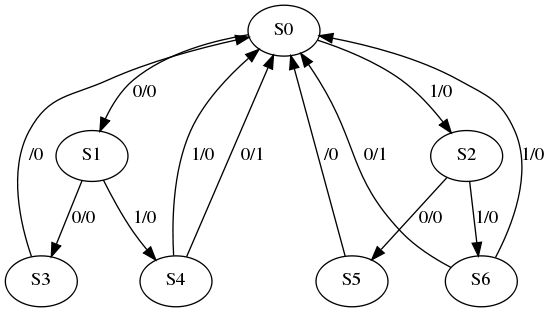

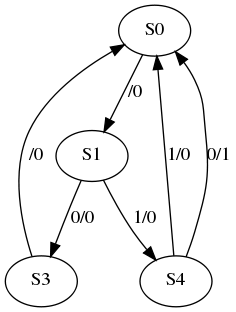

The out parameter at the top defines whether the optimized (1) or unoptimized (0) version should be outputted. Yes, that pp line is ugly.
